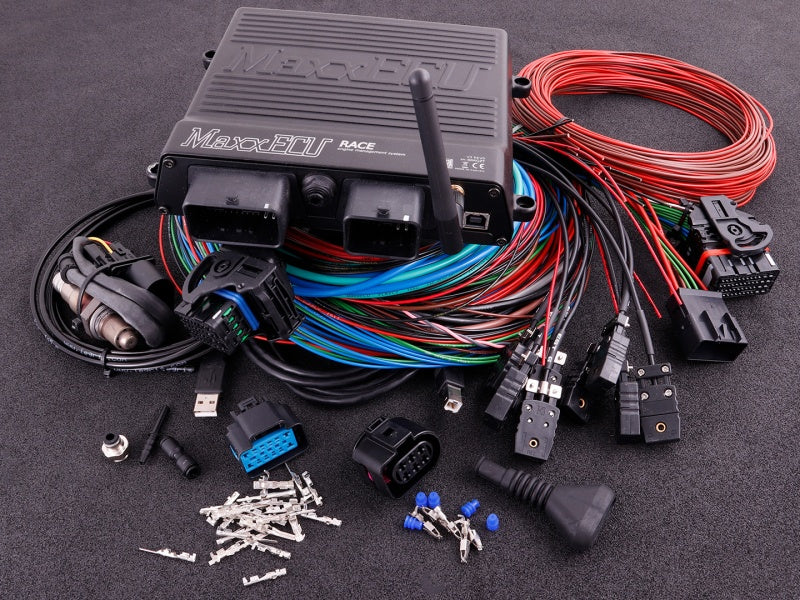

MaxxECU Race PREMIUM (ECU, harness, accessories, LSU 4.9)

MaxxECU Race PREMIUM (ECU, harness, accessories, LSU 4.9)

Regular price $1,899.04 USD
Regular price Sale price $1,899.04 USD
Sale Sold out

Exceptional engine control system for exceptional engines


The greatness lies in the features



  • Easy-to-use

  • Many options - dig deep or keep it simple

  • Extremely versatile and advanced



Selected features
  • Fast USB communication
  • US Customary or metric units
  • Modern aluminium casing design
  • Superfast cortex M3 CPU
  • Always up-to-date software
  • Nitrous (multi stages)
  • Boost control (multi stages)
  • Launch and anti-lag
  • Shift-cut and traction control
  • Flex fuel and variable valve timing

MaxxECU RACE, based on our MaxxECU PRO and uses the same easy to use, yet powerful MTune software.

Specification:

  • All 3-12 cylinder engines (4-stroke)
  • Up to 8 cylinders fully sequentially
  • Up to 12 cylinders in wasted spark
  • Lambda (WBO) sensor. Supports Bosch LSU 4.2, 4.9
  • 2 trigger inputs. VR or digital. Automatic trigger level detection
  • 2 extra temperature sensors
  • 2 knock sensor inputs
  • 6 extra 0-5V inputs
  • 4 extra digital inputs (VR / hall) or switches
  • 8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness
  • 8 peak/hold injector outputs
  • 8 ignition outputs
  • 9 extra LOW DRIVING outputs for additional features
  • 2 extra +12V DRIVING outputs
  • 4 extra motor outputs



Note: All ECU's ship via UPS with full insurance and signature required.
