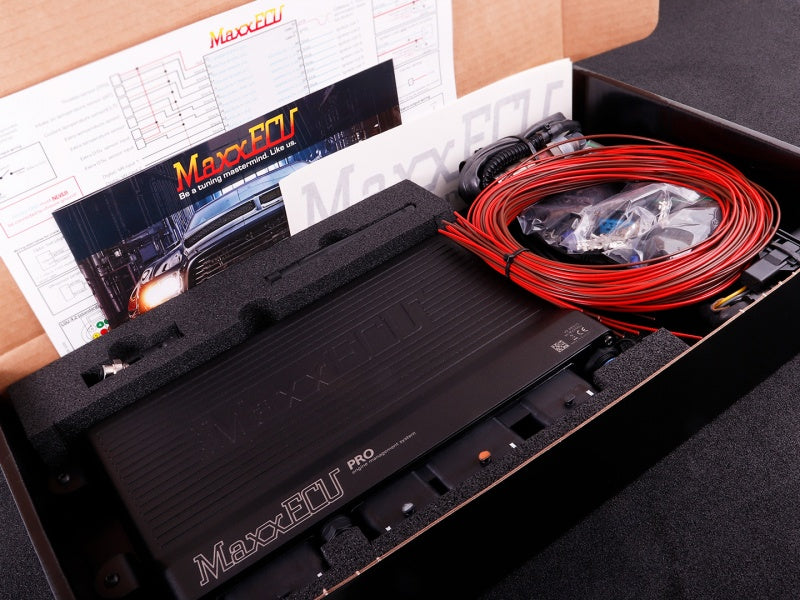

MaxxECU PRO

More information

MaxxECU PRO is a product developed from the ground up to be flexible, reliable and fast. MaxxECU PRO gives the user complete engine control!
Fast Facts:

• Up to 12 cylinders sequentially.
• 16 injector outputs (low or high impedance injectors).
• 12 ignition outputs
• 12 inputs for exhaust gas temperature sensors (EGT).
• Built in MAP-sensor for boost pressure up to 3bar (400Kpa).
• Built in driver for dual WBO sensors (LSU 4.2 and 4.9 compatible)
• Dual E-Throttle(DBW) support.
• Dual knock sensor input
• 16 optional 0-5V inputs.
• 6 additional temperature inputs.
• 10 additional digital inputs (4 of them can be used with VR sensors)
• 30 auxiliary outputs (GPO), 8 of them +12v outputs
• 2 0-5V output.
• 1 5-10v output (sensor output).
• Dual CAN bus.
• Waterproof aluminum case.
• Connectors, software and settings completely backwards compatible with standard MaxxECU. Easy upgrade.
